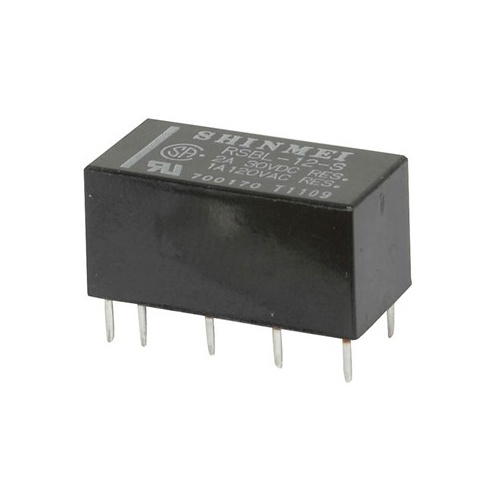

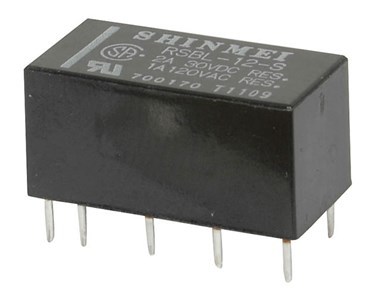

DIP style - will plug into 16 pin IC socket. Low profile mini 12V 2 coil latching relay. Highly sensitive - 180mW nominal power consumption.
Specifications
Coil - 2 Coil latching
- 12 volts DC
- Coil resistance – 800 ohms
- Nominal set and reset voltage 8.4VDC

Specifications
Contact
- Max switching power 60W, 125VA
- Max switching voltage 220VDC, 250VAC
- Max switching current 2A @ 30VDC, 1A @ 120VAC
- Size 20x10x 10(H)mm.
SKU AM-SY4060
Model # SY4060
Barcode # 9319236065990
