Specifications

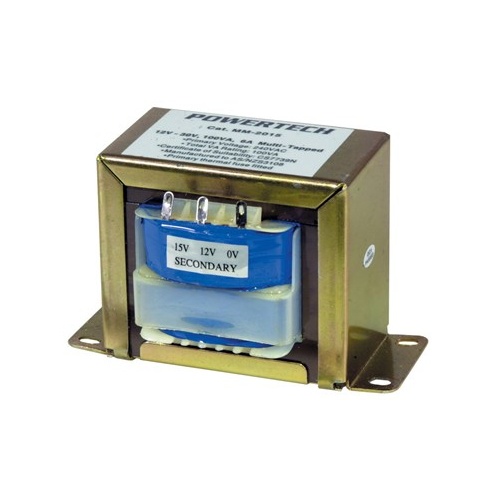

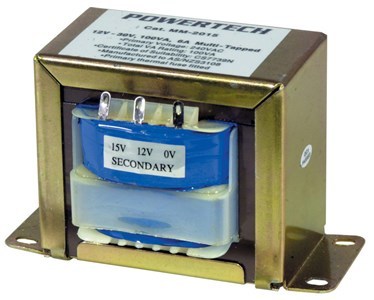

12V-30V, 100VA, 6A Multi-Tapped/Dual - Type 2170 Transformer
Type: 2170

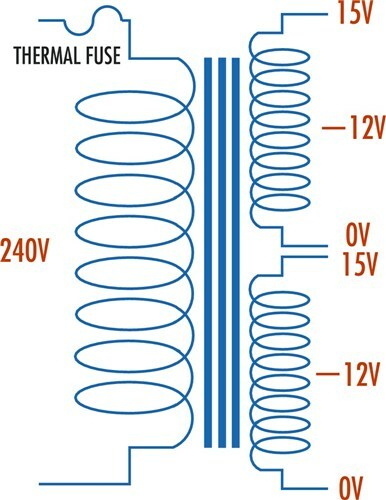

Secondary winding(s): Multi-tapped/dual
Primary voltage: 240VAC
Total VA rating: 100VA
Secondary voltages: 15V, 12V(x2)
Secondary current (max): 3A (x2)
Magnetising current:: 80mA
Temp rise above ambient at rated power: 70°C
Regulation: 7%
Weight: 1600g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

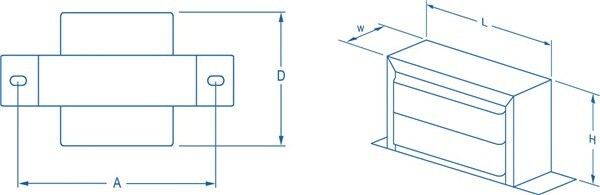

Dimensions(mm) A91 D76 L80 W44 H68



Energy Authority Certificate of Suitability No. CS:7739N

SKU AM-MM2015
Model # MM2015
Barcode # 9319236862643
