Specifications

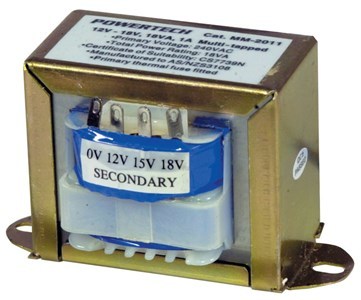

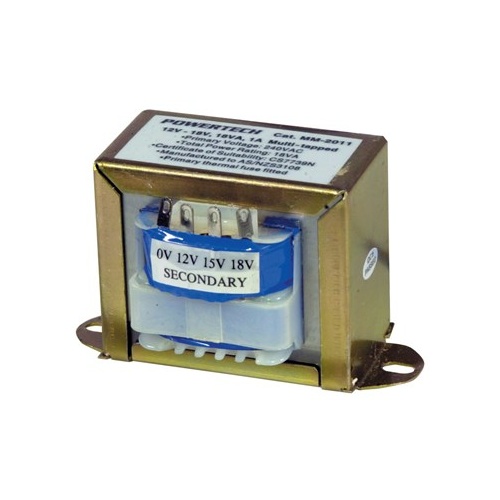

12V - 18V, 18VA, 1A Multi-Tapped - Type 2154
Type: 2154

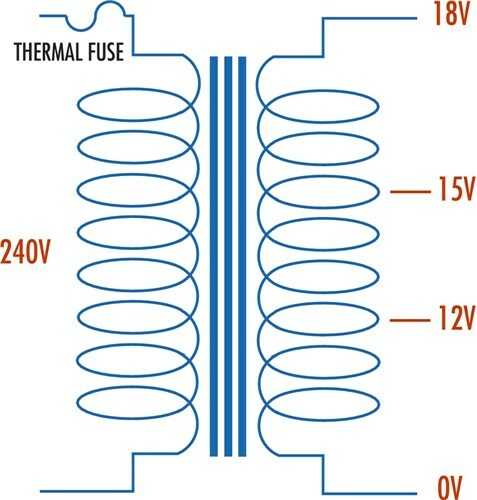

Secondary winding(s): Multi Tapped
Primary voltage: 240VAC
Total VA rating: 18VA
Secondary voltages: 18V, 15V, 12V
Secondary current (max): 1A
Magnetising current:: 40mA
Temp rise above ambient at rated power: 60°C
Regulation: 8%
Weight: 650g
Primary connection 200mm fly Leads
Secondary connection Solder lugs
Conforms to AS/NZ 3108 & AS/NZ 61558.2.6 TBA

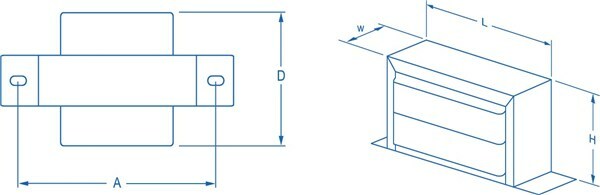

Dimensions(mm) A72 D56 L59 W32 H51



Energy Authority Certificate of Suitability No. CS:7739N
SKU AM-MM2011
Model # MM2011
Barcode # 9319236862674
