SLA
- Size 97(L) x 43(D) x 57(H)mm
- Charge current 130mA for 10-14 hours
- Discharge current 20 hour rate 65mA

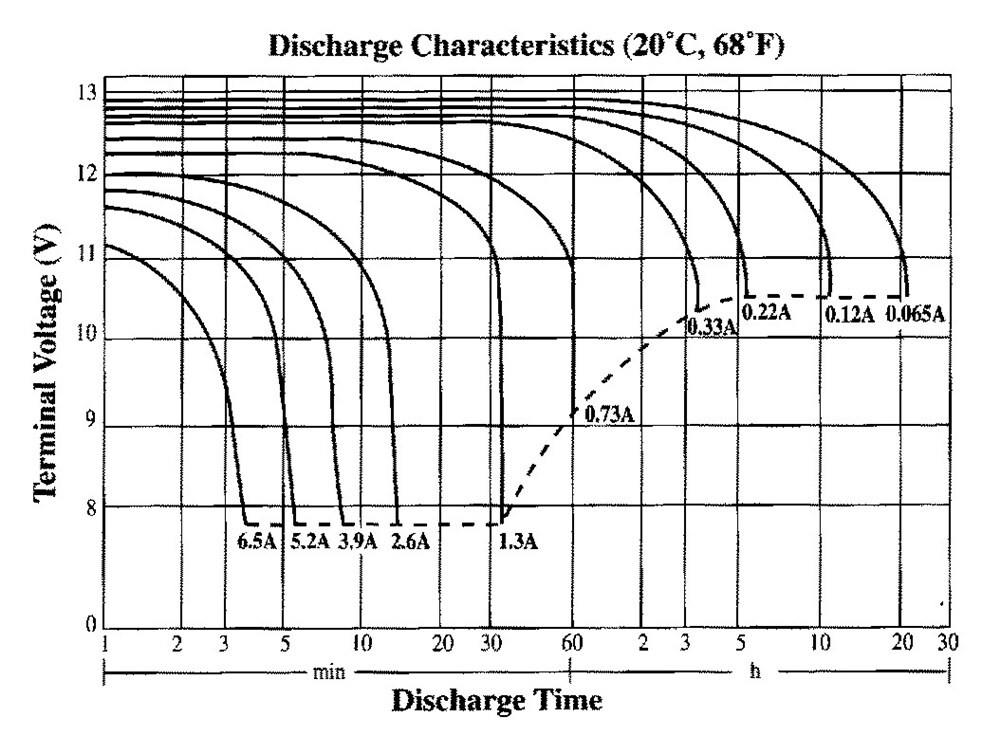

Capacity:
- 20hr rate (0.20A) 1.30Ah
- 10hr rate (0.12A) 1.20Ah
- 5hr rate (0.22A) 1.10Ah
- 1hr rate (0.73A) 0.73Ah

- Int Resistance:
Fully charged (20°C,68°F) 110mOhm
- Max Discharge Current (5 sec):40A
- Constant Voltage Charge:
Initial charging current < 0.39A
Cycle:
- Voltage 14.4V~15.0V @ 20°C (68°F)
- Temp Coefficient: - 30mV/°C
Standby:
- Voltage 13.5V~13.8V @ 20°C (68°F)
- Temp Coefficient: - 20mV/°C




SKU AM-SB2480
Model # SB2480
Barcode # 9319236013465
Shipping Weight 0.0500kg
