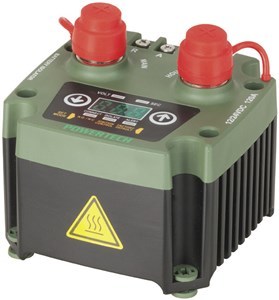

This 120A 12/24VDC Programmable Dual Battery Isolator is designed to meet your vehicle’s specific application. The DC power system of various types often alternator, main battery, house battery and loading usage are numerous and also change with time. This device features the fine tuning of key voltages, delay time set points and constant monitoring of each battery to provide the maximal charging and protection of your batteries.

The reliable and efficient Mosfet switching has minimal voltage loss resulting much less generated heat than diode based isolators. The Microprocessor Controlled circuit provides accurate monitoring, finer tuning of voltage, delay timer set points and more fail safe protection with diagnostic display.

Features:
•    Ignition Control
•    N.O & N.C contacts
•    Manual Over-ride Mode
•    Programmable parameters:
1.    Connect Voltage: 9.2 - 16VDC/18.4 - 32VDC
•    Isolate Voltage: 9 - 15.8VDC/18 - 31.6VDC
•    Alert Voltage: 9 - 15.9VDC/18 - 31.8VDC
1.    Connect/Isolate/Alert Delay: 1 - 250 seconds

Specifications:
•    Operating Voltage: 9 - 17VDC/18 - 34VDC
•    Continuous Contact Current: 120Amp
•    Dimensions: 90(L) x 90(W) x 85(H)mm
•    Weight: 0.6kg
SKU AM-MB3688
Barcode # 9319236485170
