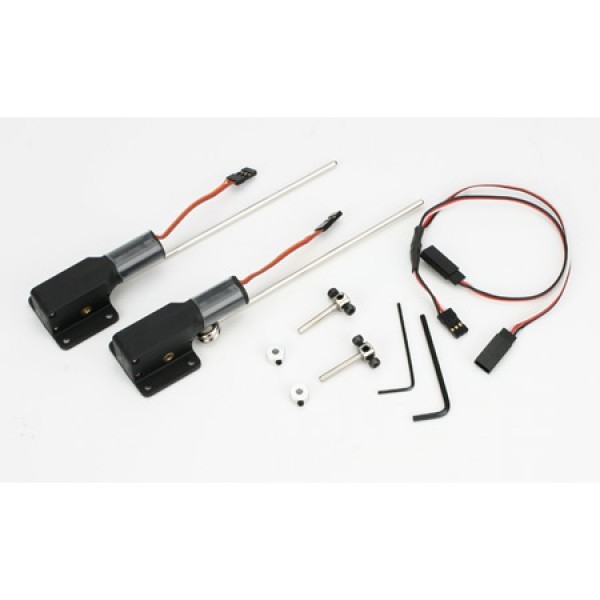

You don’t have to be a master modeler to add the realism of functioning retracts to your airplane. The completely self-contained E-flite® retract system requires no air tank, complex linkages or extra servo. It can simply be bolted into place and plugged into the receiver. A specially-designed Y-harness is included that allows for the use of a single receiver channel to control all retract units.

  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in over-current protection
  • Aircraft weight: 2.00–4.50 lb (0.90–2.00 kg)
  • Strut diameter: 0.118 in (3mm)
  • Strut length: .866 in (22mm)
Application
Aircraft 10–15 size
Speed
4.8V (1.25 sec), 6.0V (1.0 sec), 7.4V (.80 sec)
Weight
Complete Set: 4.2 oz (119 g); Nose Gear: 1.6 oz (45 g); Main gear 1.3 oz (37 g) each
Motor Type
Electric brushed can
Connector Type
Universal
Gear Type
Metal
Current Draw Idle
5mA
Current Draw Stall
200mA
Voltage
4.8–7.4V
SKU EFLG100
Barcode # EFLG100
Brand E-Flite
Shipping Weight 0.2000kg
