FEATURES:
Water-proof and dust-proof for all weather races
Small size with built-in capacitor module
Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection
Easily programmed with “jumpers”

SPECIFICATION:
Application: On-road/Off-road
Cont. / Burst Current - forward: 40A / 180A
Cont. / Burst Current - reverse: 20A / 90A
Input: 2-3S LiPo / 5-9 Cells NiMH
Battery "Low-Power" Cut-off: NiMH 4.5V / 2S LiPo 6.5V / 3S LiPo 9.75V
Motor Limit 2S LiPo/5-6 Cells NiMH: 540 or 550 Motor =12T or RPM <30.000 @ 7.2V
Motor Limit 3S LiPo/7-9 Cells NiMH: 540 or 550 Motor =18T or RPM <20.000 @ 7.2V
Maximum Reverse Force: 50%
Overheat Protection: 100°
Resistance: Fwd: 0.002 Ohm, Bwd: 0.004 Ohm
Built-in BEC: 2A/6V (Linear Mode BEC)
Plug System: Tamiya
Plug & Drive System: yes
On/Off Switch: yes
Dimmension (L/W/H): 46.5*34.0*28*5 mm
Weight: 70g
SCOPE OF DELIVERY:

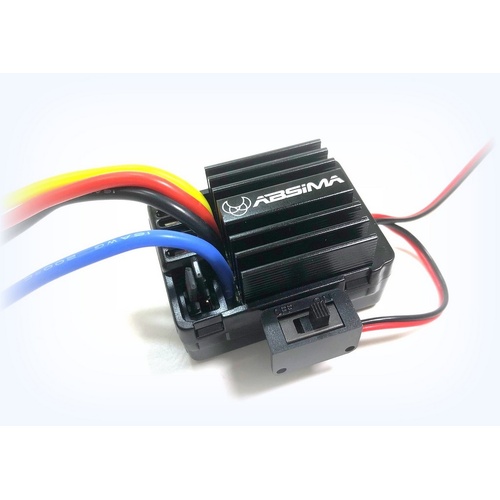

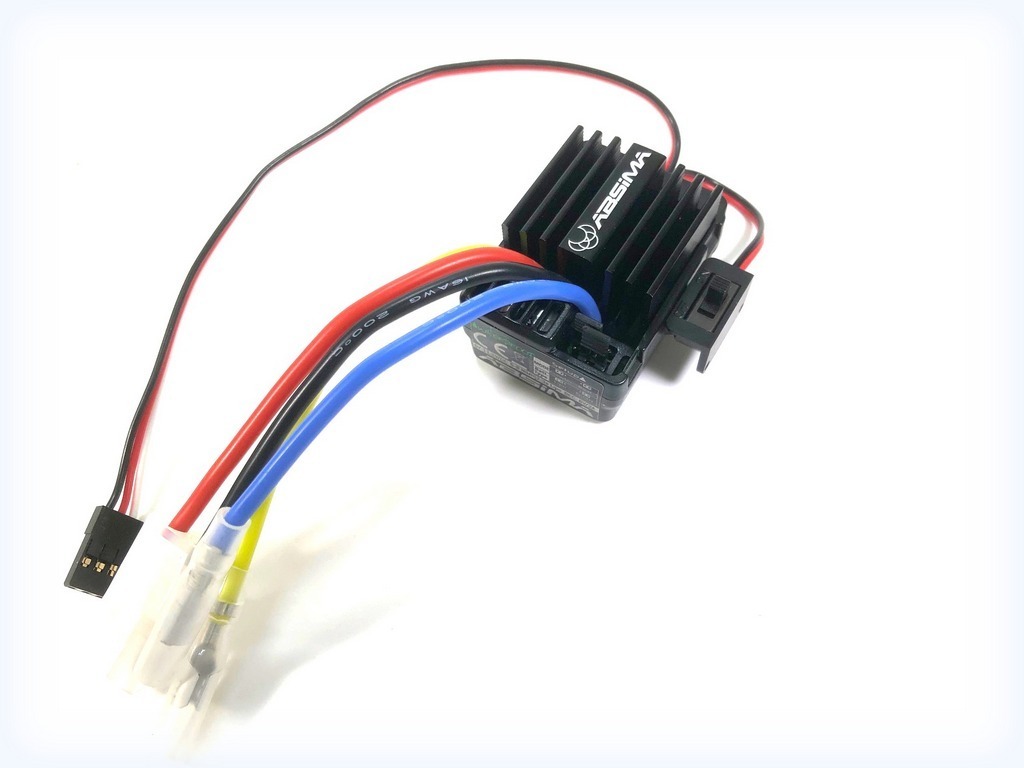

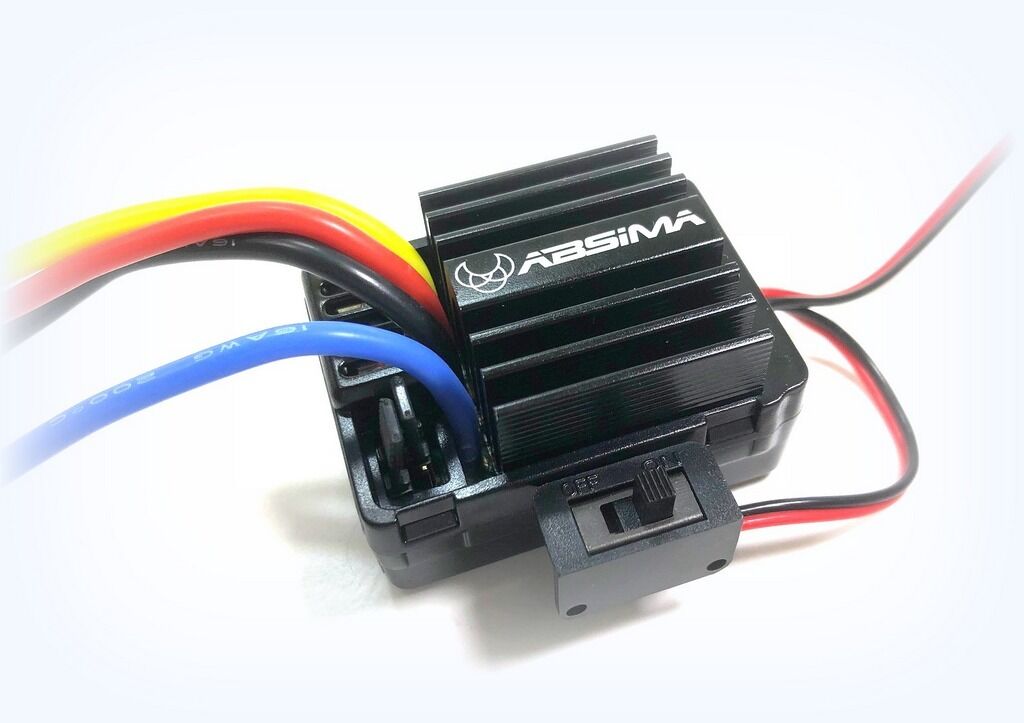

WP1040 Brushed Standard ESC
Manual

SKU AB2100004
Barcode # 4250650938352
Brand ABSIMA
Shipping Weight 0.0500kg
