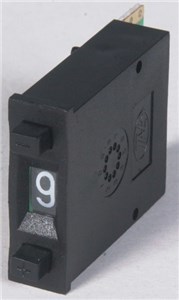

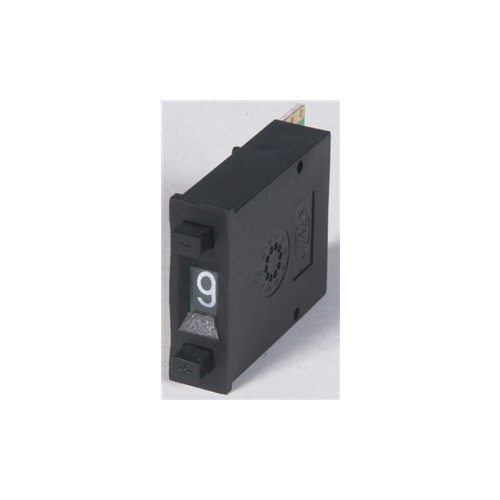

These pushwheel switches can be ganged together to make any combination and can be panel mounted using the optional pair of endcaps (SR-1254). Switch positions (0 - 9) indicated via large numbers (white on black) and outputs are BCD coded. Optional spacers (SR-1256) can be ganged together to provide spacing (7.62mm each) between the switches.

Switch specifications:
Rating: 50VAC / 28V DC Max
Switching Current: 100mA Max
Continuous Current: 500mA Max
Contact resistance: 200m ohms Max (initial)
Insulation resistance: 100M ohms Min
Dielectric strength: 500VAC 1 minute
Operating temperature: -20°C to +65°C
Ambient humidity: 75% RH Max
Mechanical life: 200,000 steps Min
Electrical life: 100,000 steps Min


SR-1250 - 0 - 9 Pushwheel switch
SR-1254 - End caps to suit (pair)
SR-1256 - Spacer
SKU AM-SR1250
Barcode # 9319236889633
