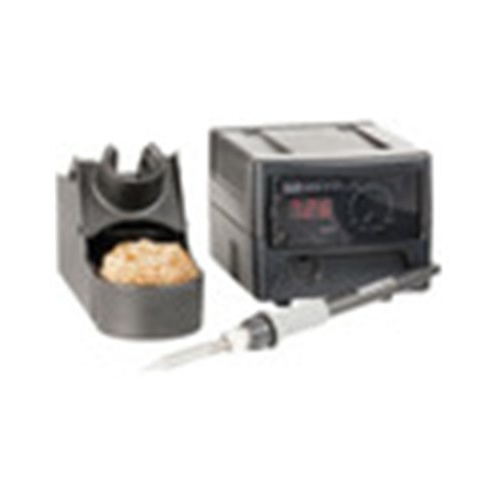

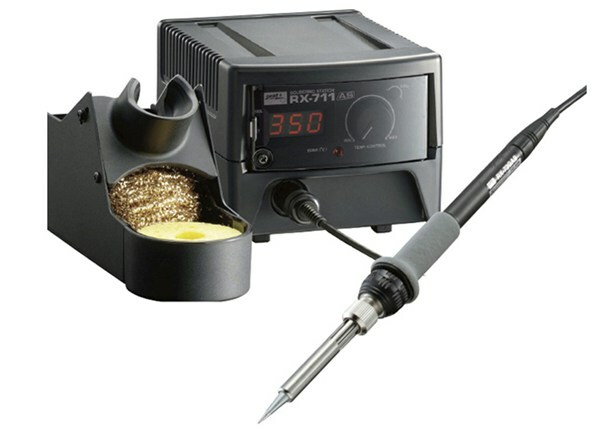

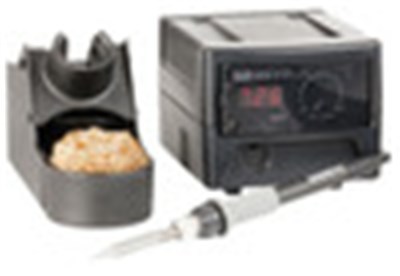

The RX-711AS soldering station is a precision, Japanese manufactured instrument with excellent temperature stability and anti-static characteristics.

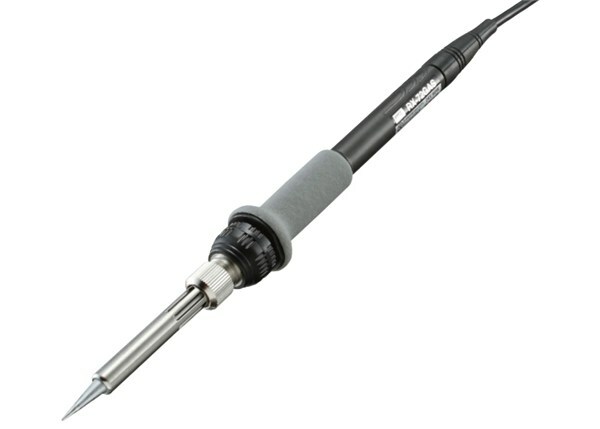

The light weight soldering pencil has a grounded tip and incorporates a ceramic heater with an integral temperature sensor. The sensor provides precise tip-temperature information to the heater controller which maintains the selected heat setting with a high degree of accuracy. Temperature stability is further enhanced by designing the heater to actually fit within a matching recess in the tip. This allows faster heat transfer and therefore better tip-temperature recovery during heavy soldering. The soldering pencil is fitted with a silicon rubber grip for added handling precision and a 1.1 metre long silicone sheathed cord attaches to the console controller via a 5 pin DIN connector. The silicone cord is incredibly supple.

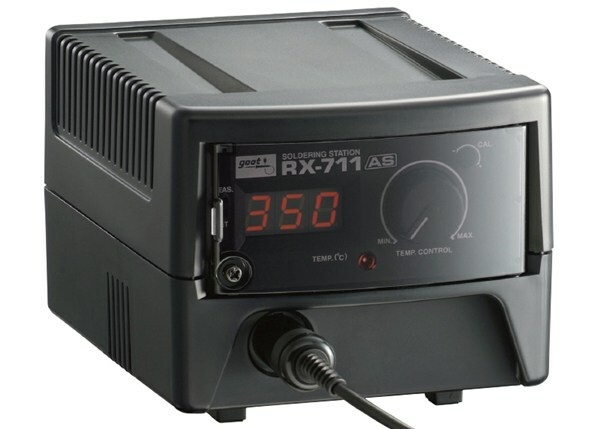

The control panel includes the digital temperature display panel, a rotary temperature control, calibration control and a display changeover switch to display either the desired or actual tip temperature. The panel is secured behind a darkened see-through cover which prevents accidental temperature changes but can be easily accessed when required.

* Safety approval number QASTE4930.
* 230-240VAC supply voltage
* 24VAC output voltage
* 65 Watt capacity heater
* 200 - 480°C temperature range
* ±3°C temperature hysteresis
* 1.1Mtr iron cable
* 1.3Mtr mains cable
* 0.5mm tip supplied

REPLACEMENT TIPS/SPONGE
Cat. TS-1441 0.5mm tip as supplied with iron
Cat. TS-1442 0.2mm tip
Cat. TS-1445 replacement sponge
SKU AM-TS1440
Model # TS1440
Barcode # 9319236875346
